Use with Makie.jl

using CairoMakie
using ProudPalettes

The palettes defined in PROUD_PALETTES can be used to set colors in Makie plots.

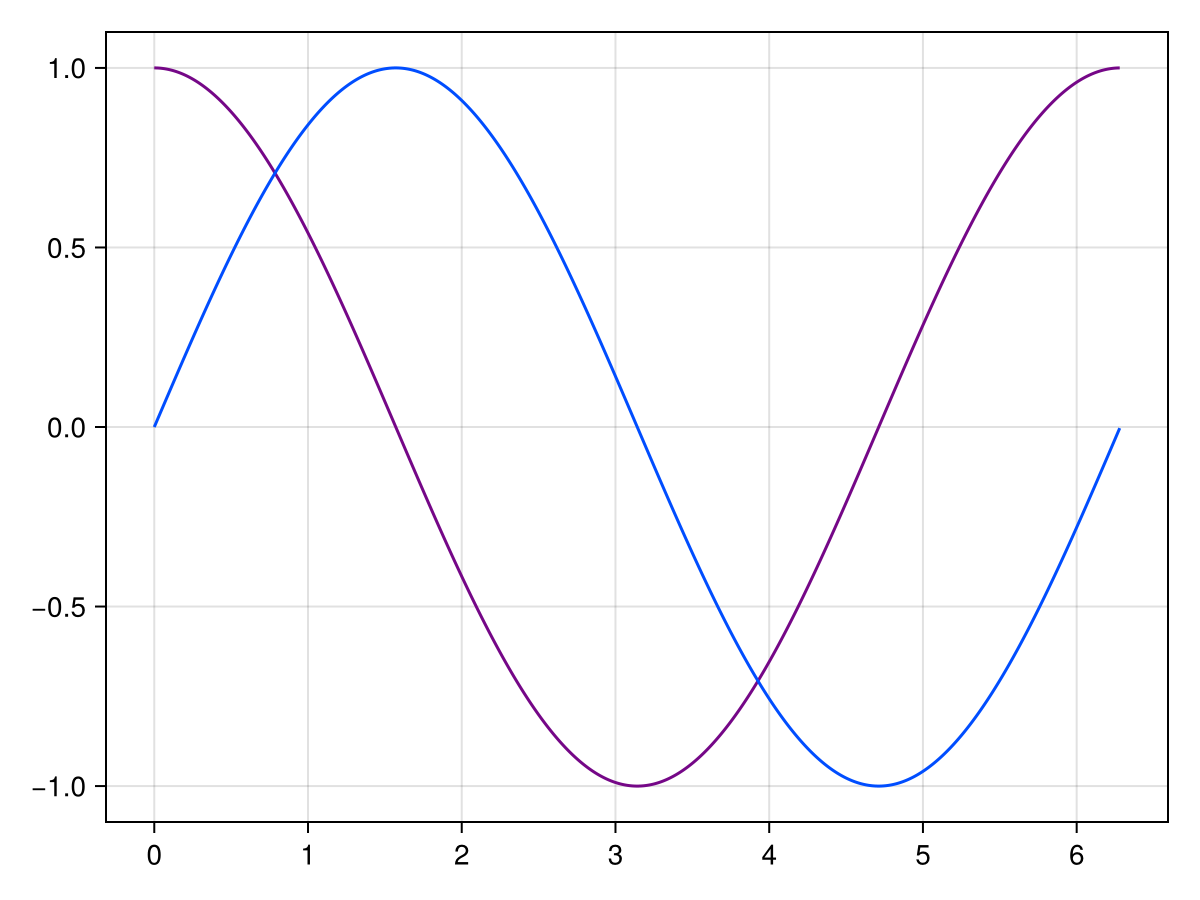

For example,

x = 0:1e-2:2π
lines(x, cos, color = PROUD_PALETTES[:rainbow][1])
lines!(x, sin, color = PROUD_PALETTES[:rainbow][2])

current_figure()

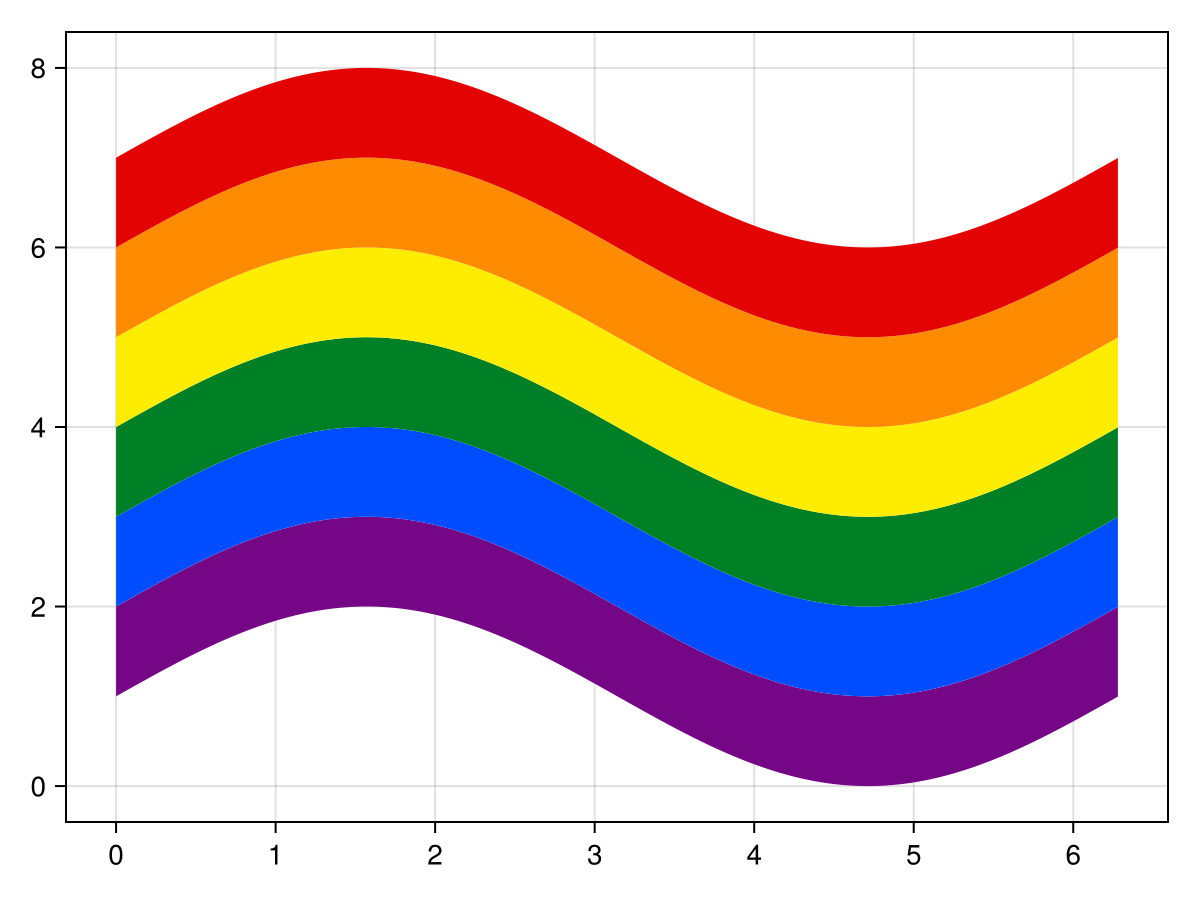

They can also be used to set the palette for a whole plot. This can be simpler than setting colors one plot at a time.

p = PROUD_PALETTES[:rainbow]

fig = Figure()
ax = Axis(fig[1, 1], palette = (patchcolor = p,))

y = sin.(x)
for (i, _) in enumerate(p)
    band!(ax, x, y .+ i, y .+ i .+ 1)
end

fig

This page was generated using Literate.jl.
